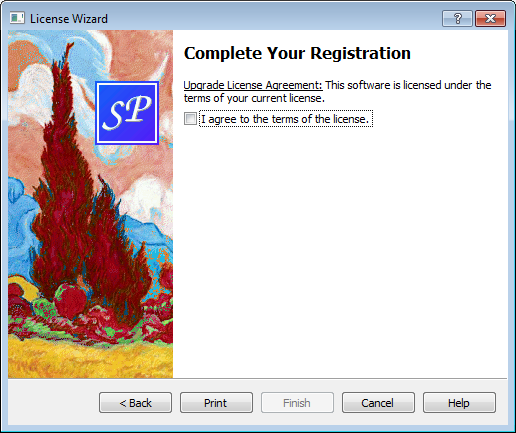

Modified the original example to position the Print button between the Back and Finish buttons rather than the default layout which would place it to the right of the Back button.
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
'''
PyQt4 conversion of Qt License Wizard Example
A complex Wizard example where the path through the wizard depends
on user choices.
NOTES:
=====
Field Validation
----------------
Fields are only validated if they are registered as mandatory
(denoted by an asterisk after the name) even if they have
been assigned a QRegExValidator.
i.e.
registerField("evaluate.email*", emailEdit) - validates
registerField("evaluate.email", emailEdit) - no validation
Button Positioning
------------------
If you want to change the order in which the buttons appear
you can set their layout; however, the layout ignores the visibility
of the custom buttons so need to remove them from the layout to hide them.
(see ConclusionPage._configWizBtns())
Refactored
----------
Refactored _showHelp() - extracted messages to _createHelpMsgs(),
solely as an exercise in using Python dictionaries.
last modified: 2012-01-25 jg
ref:
http://developer.qt.nokia.com/doc/qt-4.8/dialogs-licensewizard.html
'''
from PyQt4.QtGui import (QApplication, QWizard, QWizardPage, QPixmap, QLabel,
QRadioButton, QVBoxLayout, QLineEdit, QGridLayout,
QRegExpValidator, QCheckBox, QPrinter, QPrintDialog,
QMessageBox)
from PyQt4.QtCore import (pyqtSlot, QRegExp)
import qrc_licwiz
class LicenseWizard(QWizard):
NUM_PAGES = 5
(PageIntro, PageEvaluate, PageRegister, PageDetails,
PageConclusion) = range(NUM_PAGES)
def __init__(self, parent=None):
super(LicenseWizard, self).__init__(parent)
self.setPage(self.PageIntro, IntroPage(self))
self.setPage(self.PageEvaluate, EvaluatePage())
self.setPage(self.PageRegister, RegisterPage())
self.setPage(self.PageDetails, DetailsPage())
self.setPage(self.PageConclusion, ConclusionPage())
self.setStartId(self.PageIntro)
# images won't show in Windows 7 if style not set
self.setWizardStyle(self.ModernStyle)
self.setOption(self.HaveHelpButton, True)
self.setPixmap(QWizard.LogoPixmap, QPixmap(":/images/logo.png"))
# set up help messages
self._lastHelpMsg = ''
self._helpMsgs = self._createHelpMsgs()
self.helpRequested.connect(self._showHelp)
self.setWindowTitle(self.tr("License Wizard"))
def _createHelpMsgs(self):
msgs = {}
msgs[self.PageIntro] = self.tr(
"The decision you make here will affect which page you "
"get to see next.")
msgs[self.PageEvaluate] = self.tr(
"Make sure to provide a valid email address, such as "
"toni.buddenbrook@example.de.")
msgs[self.PageRegister] = self.tr(
"If you don't provide an upgrade key, you will be "
"asked to fill in your details.")
msgs[self.PageDetails] = self.tr(
"Make sure to provide a valid email address, such as "
"thomas.gradgrind@example.co.uk.")
msgs[self.PageConclusion] = self.tr(
"You must accept the terms and conditions of the "
"license to proceed.")
msgs[self.NUM_PAGES + 1] = self.tr("Sorry, I already gave what help I could. "
"\nMaybe you should try asking a human?")
return msgs
@pyqtSlot()
def _showHelp(self):
# get the help message for the current page
msg = self._helpMsgs[self.currentId()]
# if same as last message, display alternate message
if msg == self._lastHelpMsg:
msg = self._helpMsgs[self.NUM_PAGES + 1]
QMessageBox.information(self,
self.tr("License Wizard Help"),
msg)
self._lastHelpMsg = msg
class IntroPage(QWizardPage):
def __init__(self, parent=None):
super(IntroPage, self).__init__(parent)
self.setTitle(self.tr("Introduction"))
self.setPixmap(QWizard.WatermarkPixmap, QPixmap(":/images/watermark.png"))
topLabel = QLabel(self.tr("This Wizard will help you register your copy of "
"Super Product One™ or start "
"evaluating the product."))
topLabel.setWordWrap(True)
regRBtn = QRadioButton(self.tr("&Register your copy"))
self.evalRBtn = QRadioButton(self.tr("&Evaluate the product for 30 days"))
regRBtn.setChecked(True)
layout = QVBoxLayout()
layout.addWidget(topLabel)
layout.addWidget(regRBtn)
layout.addWidget(self.evalRBtn)
self.setLayout(layout)
def nextId(self):
if self.evalRBtn.isChecked():
return LicenseWizard.PageEvaluate
else:
return LicenseWizard.PageRegister
class EvaluatePage(QWizardPage):
def __init__(self, parent=None):
super(EvaluatePage, self).__init__(parent)
self.setTitle(self.tr("Evaluate Super Product One™"))
self.setSubTitle(self.tr("Please fill both fields. \nMake sure to provide "
"a valid email address (e.g. john.smith@example.com)"))
nameLabel = QLabel("Name: ")
nameEdit = QLineEdit()
nameLabel.setBuddy(nameEdit)
emailLabel = QLabel(self.tr("&Email address: "))
emailEdit = QLineEdit()
emailEdit.setValidator(QRegExpValidator(
QRegExp(".*@.*"), self))
emailLabel.setBuddy(emailEdit)
self.registerField("evaluate.name*", nameEdit)
self.registerField("evaluate.email*", emailEdit)
grid = QGridLayout()
grid.addWidget(nameLabel, 0, 0)
grid.addWidget(nameEdit, 0, 1)
grid.addWidget(emailLabel, 1, 0)
grid.addWidget(emailEdit, 1, 1)
self.setLayout(grid)
def nextId(self):
return LicenseWizard.PageConclusion
class RegisterPage(QWizardPage):
def __init__(self, parent=None):
super(RegisterPage, self).__init__(parent)
self.setTitle(self.tr("Register Your Copy of Super Product One™"))
self.setSubTitle(self.tr("If you have an upgrade key, please fill in "
"the appropriate field."))
nameLabel = QLabel(self.tr("N&ame"))
nameEdit = QLineEdit()
nameLabel.setBuddy(nameEdit)
upgradeKeyLabel = QLabel(self.tr("&Upgrade key"))
self.upgradeKeyEdit = QLineEdit()
upgradeKeyLabel.setBuddy(self.upgradeKeyEdit)
self.registerField("register.name*", nameEdit)
self.registerField("register.upgradeKey", self.upgradeKeyEdit)
grid = QGridLayout()
grid.addWidget(nameLabel, 0, 0)
grid.addWidget(nameEdit, 0, 1)
grid.addWidget(upgradeKeyLabel, 1, 0)
grid.addWidget(self.upgradeKeyEdit, 1, 1)
self.setLayout(grid)
def nextId(self):
if len(self.upgradeKeyEdit.text()) > 0 :
return LicenseWizard.PageConclusion
else:
return LicenseWizard.PageDetails
class DetailsPage(QWizardPage):
def __init__(self, parent=None):
super(DetailsPage, self).__init__(parent)
self.setTitle(self.tr("Fill in Your Details"))
self.setSubTitle(self.tr("Please fill all three fields. /n"
"Make sure to provide a valid "
"email address (e.g., tanaka.aya@example.com)."))
coLabel = QLabel(self.tr("&Company name: "))
coEdit = QLineEdit()
coLabel.setBuddy(coEdit)
emailLabel = QLabel(self.tr("&Email address: "))
emailEdit = QLineEdit()
emailEdit.setValidator(QRegExpValidator(QRegExp(".*@.*"), self))
emailLabel.setBuddy(emailEdit)
postLabel = QLabel(self.tr("&Postal address: "))
postEdit = QLineEdit()
postLabel.setBuddy(postEdit)
self.registerField("details.company*", coEdit)
self.registerField("details.email*", emailEdit)
self.registerField("details.postal*", postEdit)
grid = QGridLayout()
grid.addWidget(coLabel, 0, 0)
grid.addWidget(coEdit, 0, 1)
grid.addWidget(emailLabel, 1, 0)
grid.addWidget(emailEdit, 1, 1)
grid.addWidget(postLabel, 2, 0)
grid.addWidget(postEdit, 2, 1)
self.setLayout(grid)
def nextId(self):
return LicenseWizard.PageConclusion
class ConclusionPage(QWizardPage):
def __init__(self, parent=None):
super(ConclusionPage, self).__init__(parent)
self.setTitle(self.tr("Complete Your Registration"))
self.setPixmap(QWizard.WatermarkPixmap, QPixmap(":/images/watermark.png"))
self.bottomLabel = QLabel()
self.bottomLabel.setWordWrap(True)
agreeBox = QCheckBox(self.tr("I agree to the terms of the license."))
self.registerField("conclusion.agree*", agreeBox)
vbox = QVBoxLayout()
vbox.addWidget(self.bottomLabel)
vbox.addWidget(agreeBox)
self.setLayout(vbox)
def nextId(self):
return -1
def initializePage(self):
licenseText = ''
if self.wizard().hasVisitedPage(LicenseWizard.PageEvaluate):
licenseText = self.tr("Evaluation License Agreement: "
"You can use this software for 30 days and make one "
"backup, but you are not allowed to distribute it.")
elif self.wizard().hasVisitedPage(LicenseWizard.PageDetails):
licenseText = self.tr("First-Time License Agreement: "
"You can use this software subject to the license "
"you will receive by email.")
else:
licenseText = self.tr("Upgrade License Agreement: "
"This software is licensed under the terms of your "
"current license.")
self.bottomLabel.setText(licenseText)
def setVisible(self, visible):
# only show the 'Print' button on the last page
QWizardPage.setVisible(self, visible)
if visible:
self.wizard().setButtonText(QWizard.CustomButton1, self.tr("&Print"))
self.wizard().setOption(QWizard.HaveCustomButton1, True)
self.wizard().customButtonClicked.connect(self._printButtonClicked)
self._configWizBtns(True)
else:
# only disconnect if button has been assigned and connected
btn = self.wizard().button(QWizard.CustomButton1)
if len(btn.text()) > 0:
self.wizard().customButtonClicked.disconnect(self._printButtonClicked)
self.wizard().setOption(QWizard.HaveCustomButton1, False)
self._configWizBtns(False)
def _configWizBtns(self, state):
# position the Print button (CustomButton1) before the Finish button
if state:
btnList = [QWizard.Stretch, QWizard.BackButton, QWizard.NextButton,
QWizard.CustomButton1, QWizard.FinishButton,
QWizard.CancelButton, QWizard.HelpButton]
self.wizard().setButtonLayout(btnList)
else:
# remove it if it's not visible
btnList = [QWizard.Stretch, QWizard.BackButton, QWizard.NextButton,
QWizard.FinishButton,
QWizard.CancelButton, QWizard.HelpButton]
self.wizard().setButtonLayout(btnList)
@pyqtSlot()
def _printButtonClicked(self):
printer = QPrinter()
dialog = QPrintDialog(printer, self)
if dialog.exec():
QMessageBox.warning(self,
self.tr("Print License"),
self.tr("As an environment friendly measure, the "
"license text will not actually be printed."))
# main ========================================================================
def main():
import sys
app = QApplication(sys.argv)
wiz = LicenseWizard()
wiz.show()
sys.exit(app.exec_())
if __name__ == '__main__':
main()
